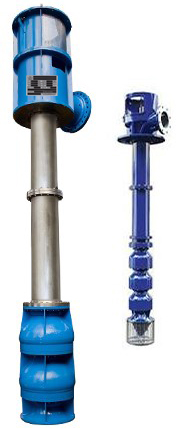

Are you looking for a leading and reliable vertical turbine pump manufacturer? Then Amrut Water Engineering is your ideal choice as we are also a leading vertical turbine pump exporter. Here, you will get various kinds of VTP Pumps that are mainly designed to operate wells.
The bowl assembly contains suction case or a bell, several series cases, and a discharge case. The pump bowl is installed in the well at depth for providing the exact intake configuration, and thus our expert team monitors the entire process so that these pumps keep working efficiently even in an adverse weather condition without facing any technical issues.
Well, we produce all our products after thorough research, and thus here you can remain to rest assured of getting the quality products from us. Apart from that our technical support team is always there to solve all your queries and issues regarding any of our pumps.
Operating Data Specification:
| Nominal Flow |
m3/h |
250 |
| Nominal Head |
m |
430 |
| Pump stage |
|
16 |
| Suction Pressure |
Bar |
0 |
| Fluid |
Water. Pure |
| Viscosity |
CP |
1 |
| Density |
g/cm3 |
1 |
| Ambient Temperature |
℃ |
25 |
| Operating Temperature |
℃ |
10 |
Ele. Motor Data.
| Rated Power kW |
500 |
| Phase |
3 |
| Speed rpm |
2900 |
| Frequency Hz |
50 |
| Electric voltage V |
380 |
| Degree of protection |
IP68 |
Pump Specification.
| Discharge Size mm |
200 |
| Brand |
Amrut water Engineering and service. |
| Speed rpm |
2900 |
| Pump number of stages |
16 |
|
|
|
|
| Impeller type |
Closed |
| Flow |
Norminal m3/h |
250 |
| Max- m3/h |
335 |
| Min- m3/h |
55 |
| Head |
Norminal bar |
450 |
| Max- bar |
690 |
| Min- bar |
234 |
| Efficiency % |
71 |

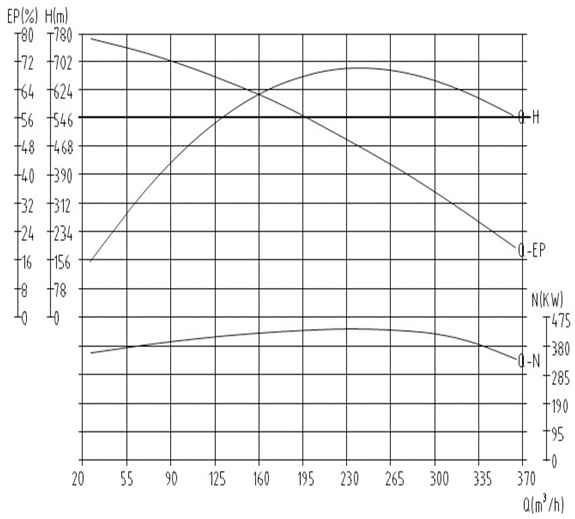

TECHNICAL DETA SHEET AND PERFORMANCE CURVE
