We are one of the leading submerged centrifugal manufacturers in Ahmedabad Gujarat India where we offer all kinds of high-quality submerged centrifugal to all our clients based on their exact requirements. So if you need to know more details regarding any of our product, then you can visit our website or directly call our support team here, and we will help you in every possible way.
Well, the best thing is that we never push any of our product; instead, we first analyze the client’s requirements and then accordingly we suggest them a best-suited product. Well, our single-stage comes in both vertical and horizontal shapes which is applicable mainly to irrigation and water pumping stations and in handling clean water. Apart from manufacturing, we are also one of the leading submerged centrifugal exporters from across the country as all the products we export to several foreign countries as well.

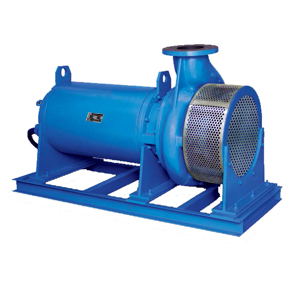

Submerged centrifugal |
|
---|---|
Maximum head | 110 m |
Minimum head | 5 m |
Main applications | Clear water / River dam dewatering / High rise buildings |
Maximum drive rating | 186 kW / 250 HP |
Maximum flow rate | 1980 m³/h |
Minimum flow rate | 120 m³/h |
Speed of rotation | 2900/ 1400 / 950 revolutions/min |
Type of bearing | Double angular Contact ball bearings / deep groove ball bearings |
Shaft seal type | Mechanical seal |
Drive | Electric motor |
Drive frequency | 50 Hz / 60 Hz |
Connection to power supply | 415 V |
Type of coupling | Auto coupling (Optional) |
Type of lubrication | Oil lubrication (Mechanical Seal) / Grease lubrication (Bearing) |
Max. permissible fluid temperature | 55 °C |
Nozzle position | Side Delivery |
Pump set location | Wet well / Completely submerged |
Shaft material | SS 410 |
Suction characteristics | Non- priming |
Type of casing | Volute casing |
Casing material | SS 316 / High chrome / SS 304 / Graded CI / Aluminium |
Type of impeller | Multi- vane impeller/Closed impeller |
No. of impeller entries | Single entry |
Impeller material | SS 316 / High chrome / SS 304 / SS 410/ Graded CI / Ni Hard |
Installation position | Vertical/Horrizontal |
Impeller material | SS 316 / High chrome / SS 304 / SS 410/ Graded CI / Ni Hard |
