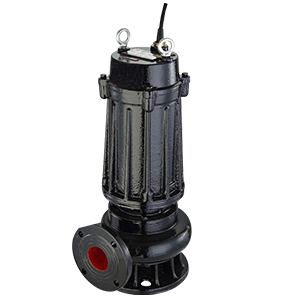

Sewage Pump
Are you looking for a renowned sewage pump manufacturer from Ahmedabad Gujarat India who offers all premium quality sewage pumps at an affordable cost? Then you are here at the very right place. We at Amrut Water Engineering manufactures various ranges of premium quality sewage pumps based on the requirements of our clients. It has an application for handling all kinds of aggressive wastewater in the wastewater engineering sector.
And thus if you have any kinds of questions regarding any of our sewage pumps, then you can directly visit our website for more information, or you can call our support team in this regard. Well, apart from that manufacturing various ranges of these pumps we are also a leading sewage pump exporter in the country as many of our products get exported to foreign countries too. So we first analyze the client’s requirements and based on that we suggest them a best suitable product.
| Sewage Submersible pump | |
|---|---|
| Maximum head | 52 m |
| Minimum head | 3 m |
| Main applications | Waste water / Sewage / Mining / Dredges/Storm Water |
| Maximum drive rating | 186 kW / 250 HP |
| Maximum flow rate | 2400 m³/h |
| Minimum flow rate | 40 m³/h |
| Speed of rotation | 2900/ 1400 / 950 revolutions/min |
| Free passage (Solid handeling) | 150 mm |
| Type of bearing | Double angular Contact ball bearings / deep groove ball bearings |
| Drive | Electric motor |
| Drive frequency | 50 Hz / 60 Hz |
| Connection to power supply | 415 V |
| Type of coupling | Auto coupling (Optional) |
| Type of lubrication | Oil lubrication (Mechanical Seal) / Grease lubrication (Bearing) |
| Max. permissible fluid temperature | 55 °C |
| Nozzle position | Side Delivery |
| Pump set location | Wet well / Completely submerged / Semi sebmerged with expernal cooling arrangement |
| Shaft material | SS 410 |
| Suction characteristics | Non- priming |
| Type of casing | Volute casing |
| Casing material | SS 316 / High chrome / SS 304 / Graded CI / Aluminium |
| Type of impeller | Multi- vane impeller/ Semi Open impeller / Vortex Impeller / Grinder Impeller |
| No. of impeller entries | Single entry |
| Impeller material | SS 316 / High chrome / SS 304 / SS 410/ Graded CI / Ni Hard |
| Installation position | Vertical/Horrizontal |
| Shaft seal type | Mechanical seal |
