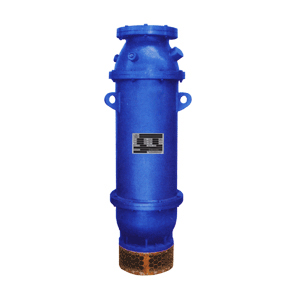

Polder Manufacturer
Are you looking for a reputable polder manufacturer in Ahmedabad Gujarat India who offers premium quality Polder at an affordable cost? Then you have landed up here in the very right place at Amrut Water Engineering. We are one of the pioneer names among all the leading polder exporter in the city and thus if you are looking for top quality products at a local price then surely we are the best choice for you all.
Polders are mainly used in irrigation and all water pumping stations as well as in handling raw and clean water. Apart from that, it has also had an application in industrial plants, industrial water supply systems, etc. If you have any sorts of queries regarding any of our products, then you just gave us a call directly from our website, and our customer support team will lay a helping hand in solving all your queries.
| Maximum head | 110 m |
|---|---|
| Minimum head | 5 m |
| Installation position | Vertical/Horrizontal |
| Shaft seal type | Mechanical seal |
| Main applications | Clear water transort / Dewatering / Irrigation / hygenic water transport |
| Maximum drive rating | 186 kW / 250 HP |
| Type of installation | Stationary |
| Maximum flow rate | 1500 m³/h |
| Minimum flow rate | 20 m³/h |
| Speed of rotation | 2900/ 1400 / 950 revolutions/min |
| Free passage (Solid handeling) | 20 mm |
| Type of bearing | Bush bearings |
| Drive | Electric motor |
| Drive frequency | 50 Hz / 60 Hz |
| Type of drive | Electric motor |
| Drive voltage | Standard voltage |
| Connection to power supply | 415 V |
| Type of lubrication | Water lubrication |
| Max. permissible fluid temperature | 50 °C |
| Nozzle position | Top Delivery |
| Pump set location | Wet well / Completely submerged / Semi sebmerged with expernal cooling arrangement |
| Shaft material | SS 410 |
| Suction characteristics | Non- priming |
| Type of casing | Diffuser casing |
| Casing material | SS 316 / High chrome / SS 304 / Graded CI / Aluminium |
| Type of impeller | Multi- vane impeller/ Closed impeller |
| No. of impeller entries | Single entry / double stage ( 2 impellers) |
| Impeller material | SS 316 / High chrome / SS 304 / SS 410/ Graded CI / Ni Hard |
