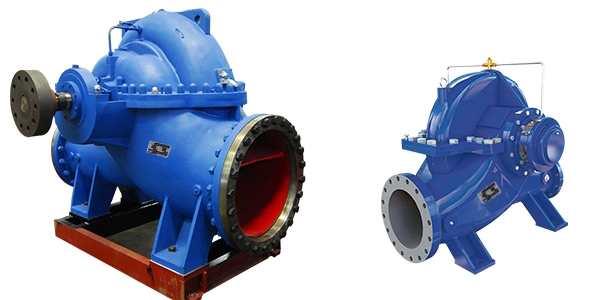

Horizontal Split Casing Pump

Horizontal Split Casing Pump

Are you looking for a well-known Horizontal Split Casing Pump Manufacturer who provides all quality product at an affordable cost? Then you are here at the very right place. At Amrut Water Engineering you can expect to get all top quality products that comes with better longevity and best suits to your needs as well as your budget.

Well, the best thing that differs us from the competition is that we first analyze the overall requirements of the client and then based on that we recommend them a best suitable products.

With decades of experience in this sector we have right now clients from all across the country as well as from across the globe. Therefore, we are also now well-known as leading Horizontal Split Casing Pump Exporter as well. Many of our products are exported to foreign countries and thus for this we have a well-maintained team of all experienced customer support professional.


Type of installation Stationary
Maximum flow rate 600 m³/h
Minimum flow rate 5 m³/h
Maximum head 70 m
Minimum head 15 m
Speed of rotation 1450 revolutions/min
Maximum discharge-side pressure 7 bar
Type of bearing Ball bearings
Drive frequency 50 Hz / 60 Hz
Type of drive Electric motor
Type of installation Long- coupled
Type of coupling Direct
Type of lubrication Grease lubrication
Pump set location Dry installed
Installation position Horizontal
Shaft seal type Gland packing
Main applications Oil / Gas / Turbid water / Building services / Industrial water supply / Fire Fighting / Air conditioning
Standard DIN
Suction characteristics Non- priming
Type of casing Horizontal Split casing
Casing material Cast iron
No. of impeller entries Single entry
Impeller material CI / SS /  BRONZE
Type of impeller Radial / Multi-vane impeller / Closed
Shaft material SS 410
