Dewatering Pump Manufacturer

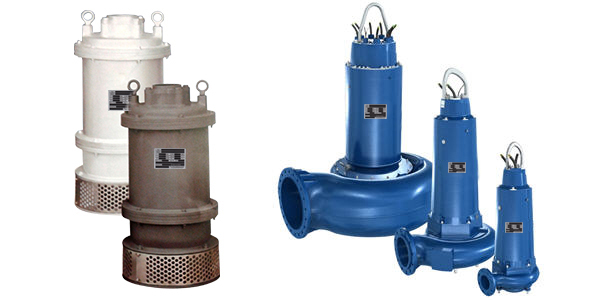

Are you looking for a renowned dewatering pump manufacturer from Ahmedabad that offers all quality pump at an affordable cost? Then you are here at the right place at Amrut Water Engineering. Here, we offer all kinds of dewatering pumps based on the requirements of the client and that also at an affordable cost. All these pumps comes with all vertical shaped and single stage or two stage submersible motor pump made of all wear-resistant industrial materials in fully close -coupled design.
Well, this kind of pumps are mainly used in pumping stations, while handling raw and clean water, industrial plants, etc. Apart from manufacturing and selling all these pumps, we are also leading Dewatering Pump Exporter from Ahmedabad. So if you have any kinds of queries relating any of our products then you can directly call our support team for getting all possible help in this regard.
| Maximum head | 110 m |
|---|---|
| Minimum head | 5 m |
| Installation position | Vertical/Horrizontal |
| Shaft seal type | Mechanical seal |
| Main applications | Clear water transort / Dewatering |
| Maximum drive rating | 186 kW / 250 HP |
| Type of installation | Stationary |
| Maximum flow rate | 1500 m³/h |
| Minimum flow rate | 20 m³/h |
| Speed of rotation | 2900/ 1400 / 950 revolutions/min |
| Free passage (Solid handeling) | 20 mm |
| Type of bearing | Deep groove ball bearings |
| Drive | Electric motor |
| Drive frequency | 50 Hz / 60 Hz |
| Type of drive | Electric motor |
| Drive voltage | Standard voltage |
| Connection to power supply | 415 V |
| Type of lubrication | Oil lubrication |
| Max. permissible fluid temperature | 50 °C |
| Nozzle position | Top Delivery |
| Pump set location | Wet well / Completely submerged / Semi sebmerged with expernal cooling arrangement |
| Shaft material | SS 410 |
| Suction characteristics | Non- priming |
| Type of casing | Diffuser casing |
| Casing material | SS 316 / High chrome / SS 304 / Graded CI / Aluminium |
| Type of impeller | Multi- vane impeller/ Closed impeller |
| No. of impeller entries | Single entry / double stage ( 2 impellers) |
| Impeller material | SS 316 / High chrome / SS 304 / SS 410/ Graded CI / Ni Hard |
