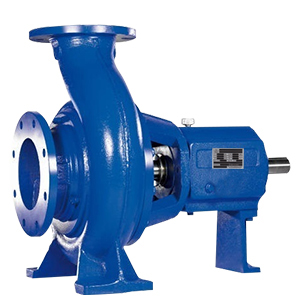

Back Pull Out Pump
We are one of the leading back pull out pump manufacturer in Ahmedabad Gujarat India where we offer all kinds of quality back pull pumps to our clients at a very budget friendly cost. Here, we first analyze the overall requirements of the client and then based on that we suggest them the best quality back pull out the pump that will best suit them.
These pumps mainly come in a flat shape that is radially split volute casing pump that comes with back pull-out designs. Apart from that, it is also available in variant MOC's and impeller designs like the semi-open impeller, etc.
The primary application of this kind of pumps is in handling all aggressive liquids in the chemical and petrochemical industrial sectors. Apart from manufacturing and supplying all these pumps, we are also a leading Back Pull Out Pump Exporter from Ahmedabad Gujarat India.
| Type of installation | Stationary |
|---|---|
| Maximum flow rate | 550 m³/h |
| Minimum flow rate | 2.5 m³/h |
| Maximum head | 102 m |
| Minimum head | 3 m |
| Speed of rotation | 3500/ 2900 / 1400 / 950 revolutions/min |
| Maximum discharge-side pressure | 10 bar |
| Type of bearing | Ball bearings |
| Drive frequency | 50 Hz / 60 Hz |
| Type of drive | Electric motor |
| Type of installation | Long- coupled |
| Type of coupling | Direct |
| Type of lubrication | Oil lubrication / Grease lubrication |
| Max. permissible fluid temperature | 140 °C |
| Nozzle position | End suction |
| Pump set location | Dry installed |
| Installation position | Horizontal |
| Shaft seal type | Mechanical seal / Gland packing |
| Main applications | Oil / Gas / Turbid water / Building services / Industry and process engineering |
| Standard | DIN |
| Suction characteristics | Non- priming |
| Type of casing | Volute casing |
| Casing material | SS 316/ SS 410 / SS 304 / Cast iron / Cast steel / Nodular cast iron / Bronze / Chrome nickel steel |
| No. of impeller entries | Single entry |
| Impeller material | SS 316 / High chrome / SS 304 / SS 410/ Graded CI / Ni Hard |
| Type of impeller | Radial / Multi-vane impeller / Closed / Semi Open |
| Shaft material | SS 410 / SS 316 |
